The precision prototyping is the bridge between an innovative idea and a tangible product. But when that idea demands the utmost accuracy, creating a high-tolerance prototype can be a daunting and complex undertaking. The difference between a successful prototype and a costly failure often comes down to a few critical choices made long before the first chip is cut.
At Dongguan Huade Precision Manufacturing Co., Ltd., our precision prototyping is more than just a service—it’s a partnership. We specialize in CNC prototyping with tight tolerances, and this guide is a testament to our philosophy: getting it right from the very beginning. Here, we share our playbook for transforming your vision into a successful high-tolerance prototype.
Phase 1: The Foundation of Success – Design for Manufacturability (DFM)
The most critical step in the entire prototype manufacturing process happens on the drawing board. It’s called Design for Manufacturability (DFM). This is not about compromising your design; it’s about optimizing it to be produced efficiently and accurately.
A skilled manufacturing partner can save you significant time and money by spotting potential issues in the design phase. We collaborate with you to address key questions:
- Are the tolerances realistic for the chosen material and process?
- Are there sharp internal corners that will be impossible to machine with standard tooling?
- Is the part’s geometry susceptible to warp or stress during machining?
- Can the design be simplified without sacrificing function?
By engaging in a thorough DFM review, we help you refine your prototype design tips and prevent costly design flaws that could surface later in the process.
Phase 2: The Right Choices – Material and Technology
The success of a high-tolerance prototype hinges on two key choices: the material and the manufacturing technology.
- Strategic Material Selection: The choice of material is not just about function; it’s about machinability. For example, while stainless steel offers exceptional strength, titanium’s poor thermal conductivity presents a unique set of challenges. We provide expert guidance on material selection for prototyping, helping you choose a material that balances your performance requirements with manufacturability. This ensures that the material can hold the specified tight tolerance without excessive cost or difficulty.
- Advanced CNC Technology: To achieve micron-level accuracy, you need more than just a standard CNC machine. Our facility is equipped with state-of-the-art multi-axis CNC machines and robust tooling that are essential for machining complex geometries and difficult materials. This advanced technology ensures that your prototype is produced with the highest level of precision and repeatability.
Phase 3: The Proof – Quality Control and Validation
The job isn’t done when the part comes off the machine. The final and most crucial step is validation. For high-tolerance prototypes, this phase is non-negotiable.

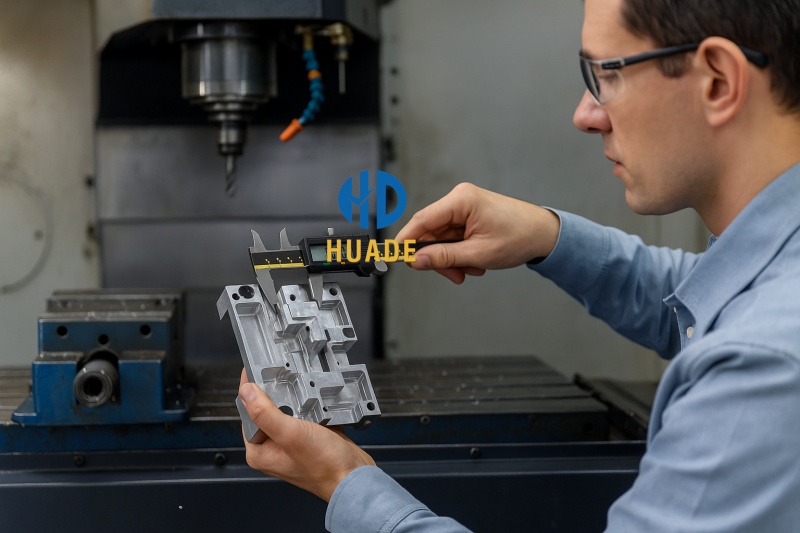

Our precision parts quality control process is integrated throughout the entire manufacturing process, not just at the end. We utilize a range of advanced metrology equipment, including Coordinate Measuring Machines (CMMs) with sub-micron resolution, optical comparators, and surface profilers. Every critical dimension and GD&T callout is meticulously checked against your specifications.
This rigorous validation process ensures that the prototype you receive is an exact representation of your design intent. It gives you the confidence to proceed to the next stage of your project without worrying about hidden dimensional errors.
Your Partner for High-Tolerance Prototyping
Creating a successful high-tolerance prototype is a journey that requires expertise, precision, and partnership at every step. At Dongguan Huade Precision Manufacturing, we bring all three to the table. Our team of experienced engineers and machinists are ready to collaborate with you, from the initial DFM review to the final quality inspection.
Our comprehensive CNC prototyping with tight tolerances services are designed to save you time, reduce costs, and ensure your project’s success. We turn complex challenges into reliable solutions, giving you a tangible, perfect prototype you can trust.
Don’t let your next great idea be stalled by prototyping failures. Our comprehensive CNC prototyping with tight tolerances services are designed to save you time, reduce costs, and ensure your project’s success. We turn complex challenges into reliable solutions, giving you a tangible, perfect prototype you can trust. For more details on our complete range of tight-tolerance CNC machining services, visit our blog post titled Precision Perfected: Your Guide to Tight-Tolerance CNC Machining Services.
We can help you create a perfect precision prototype. Check hdproto.com to learn more about our end-to-end precision prototyping services or contact us now to discuss your next high-tolerance project.
